Plasma Cutting Accessories

Plasma cutting accessories play a pivotal role in optimizing the efficiency, precision, and safety of plasma cutting systems. These complementary tools and components are designed to work seamlessly with plasma cutting torches, extending their functionality, protecting equipment, and ensuring user safety during operations. By selecting the right accessories, operators can achieve good cut quality, prolong the lifespan of their equipment, and streamline workflows in various industrial and fabrication settings.

​​Nozzle Protectors and Shields:​​

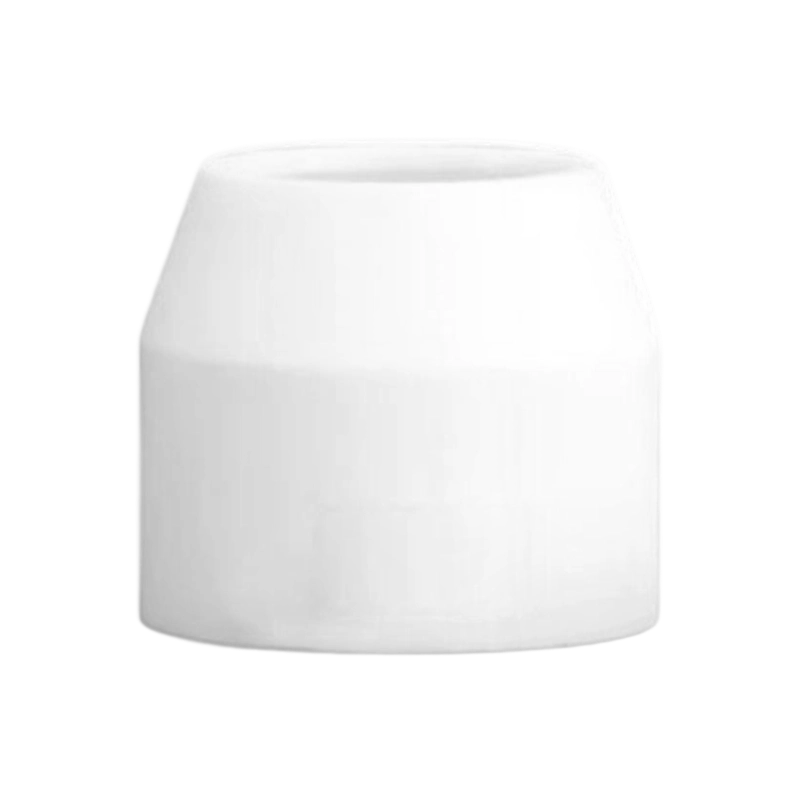

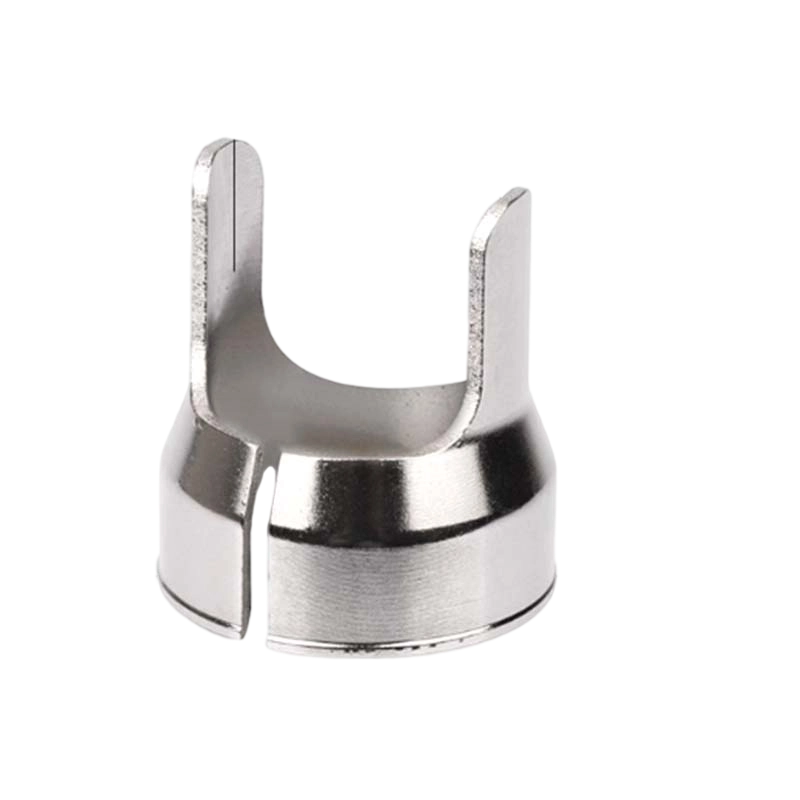

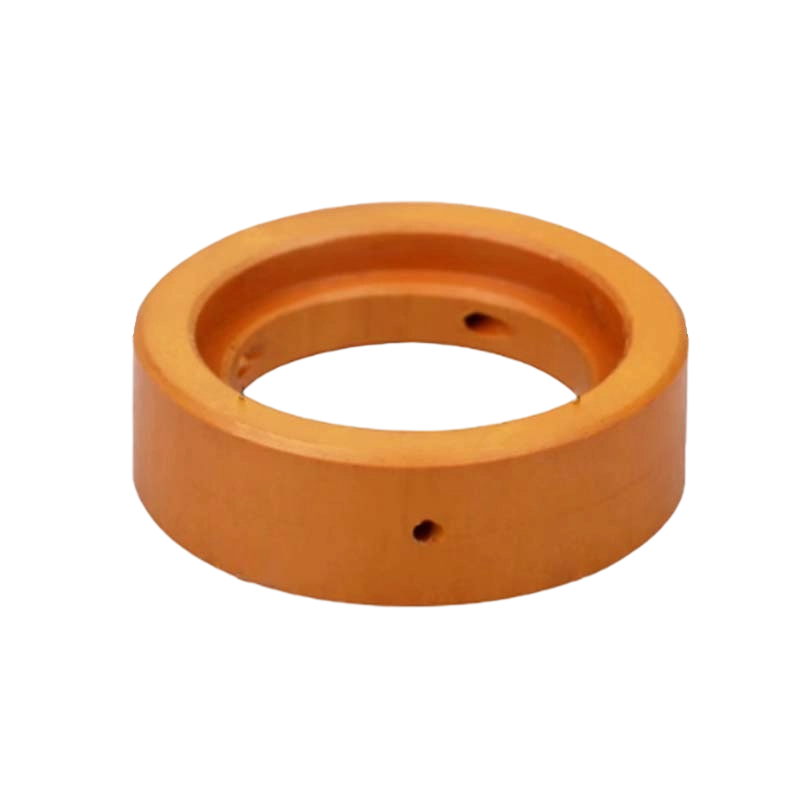

To protect nozzles and ensure consistent cutting quality, nozzle protectors and shields are indispensable. These accessories guard the nozzle against molten metal spatter, debris, and accidental impacts, reducing the risk of damage. By maintaining the integrity of the cutting arc, they prevent inconsistencies that could compromise cut edges or lead to incomplete cuts. Their simple design allows for quick installation and replacement, reducing downtime.

​​Gas Management Components:​​
Efficient gas delivery is critical for plasma cutting, as the type and flow of gas directly affect cut quality. Accessories such as gas regulators, flow meters, and swivels ensure precise control over gas pressure and flow rates. These components help maintain the proper gas mixture required for different materials and thicknesses, enhancing arc stability and cut precision. Swivels, in particular, enable flexible torch movement by allowing gas hoses to rotate freely, reducing the risk of tangling.

​​Torch Handles and Grips:​​

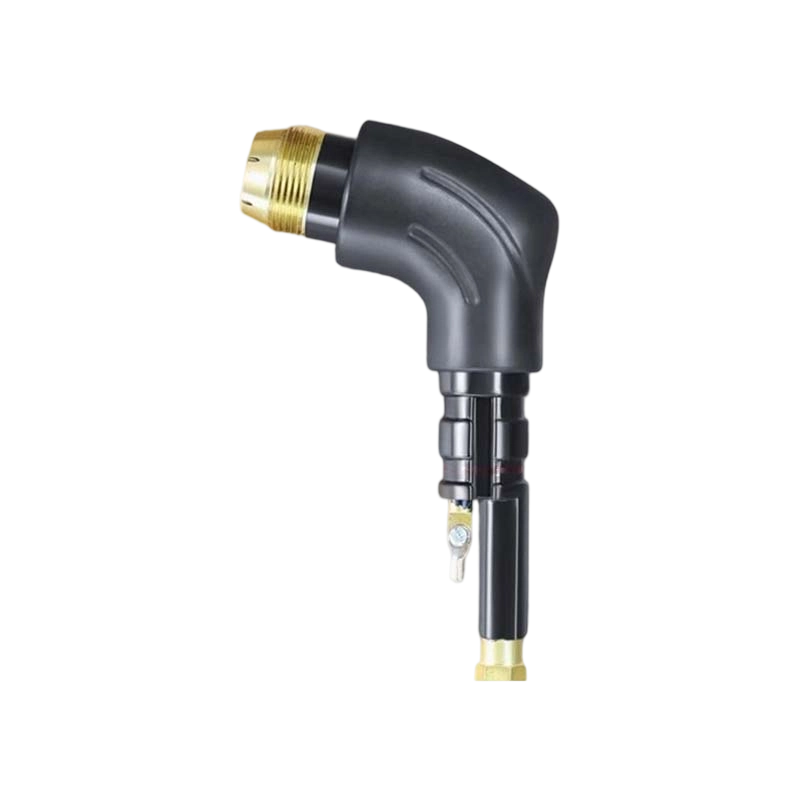

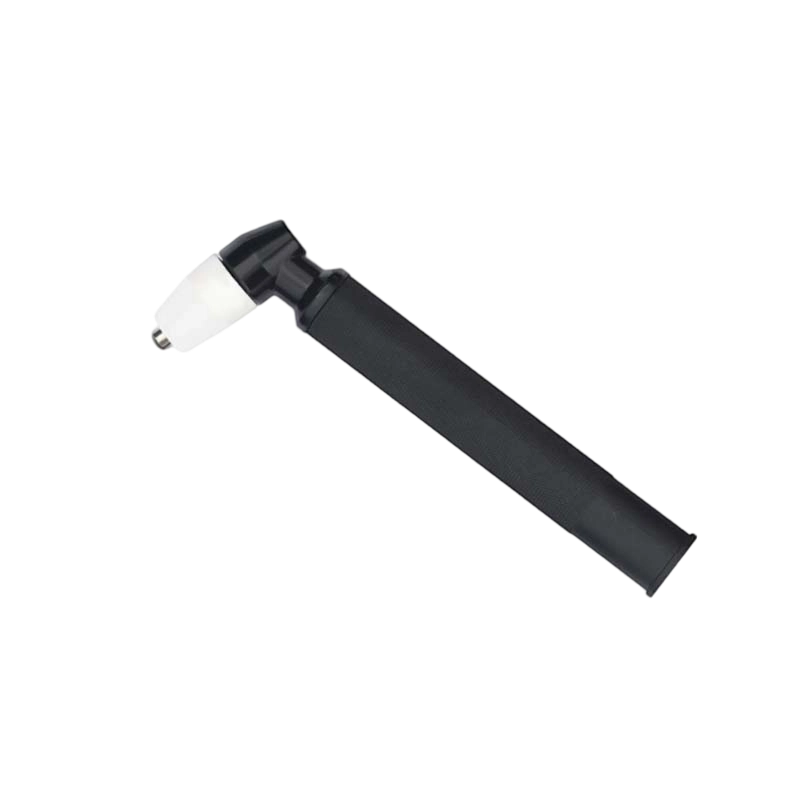

Ergonomic torch handles and grips are essential for reducing operator fatigue and ensuring precise control during extended cutting sessions. These accessories are designed for comfort, featuring textured surfaces or cushioned grips that enhance dexterity. Some handles also incorporate cooling mechanisms or ergonomic shapes to improve handling, particularly in high-duty-cycle applications.

​​Clamps and Positioning Tools:​​

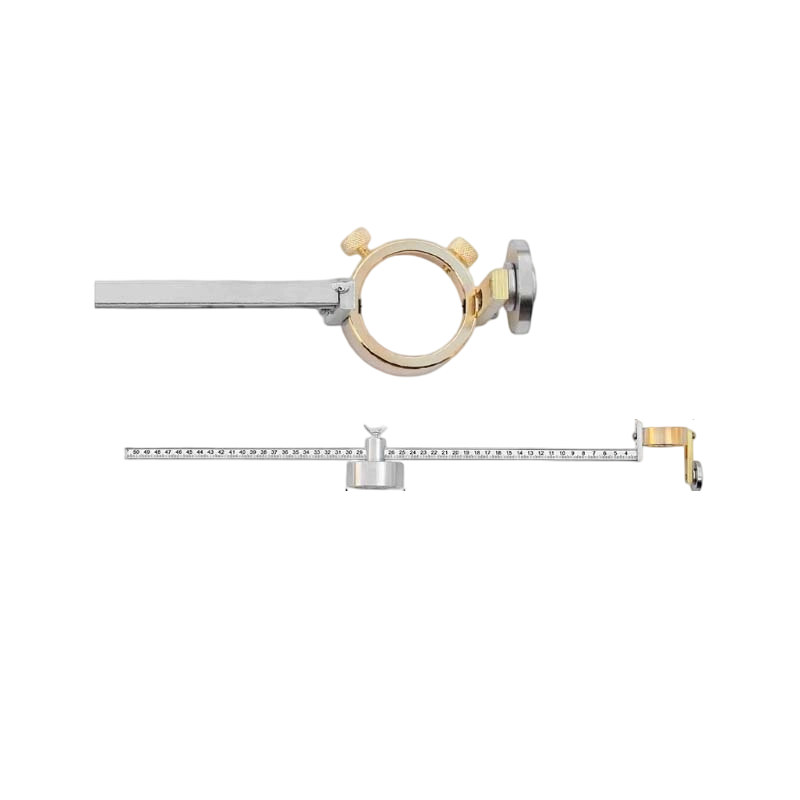

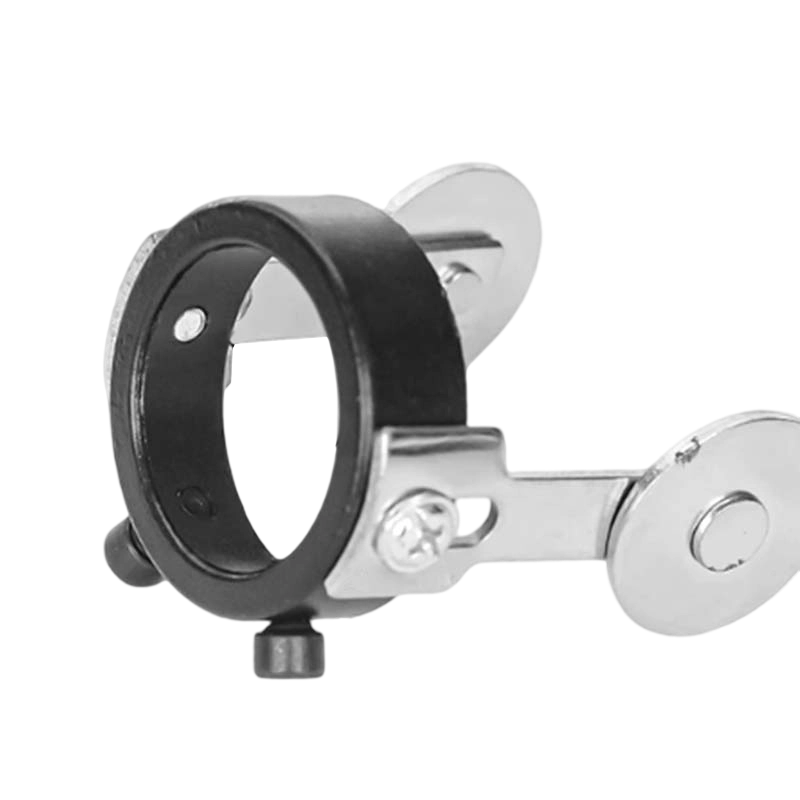

Accurate positioning of the workpiece is crucial for clean and consistent cuts. Clamps, magnets, and positioning guides secure metal pieces firmly in place, preventing movement during cutting. These tools are particularly useful for intricate designs or when working with irregularly shaped materials. Their versatility allows operators to adapt to various cutting scenarios, ensuring precision and reducing rework.

In conclusion, plasma cutting accessories are indispensable for achieving good results in metal fabrication. By investing in high-quality complementary tools and components, operators can enhance their plasma cutting systems’ performance, ensure consistent quality, and prioritize safety in their work environment.

About
Zhejiang Juzhi Intelligent Technology Co., Ltd.
Zhejiang Juzhi Intelligent Technology Co., Ltd.
As a professional supply chain service provider in the welding field, is dedicated to offering industrial customers cost-effective welding and cutting solutions. Relying on over a decade of industry accumulation, we have established a product matrix covering 17 major categories of spare parts such as welding torches, cutting nozzles, and conductive nozzles. We have also deeply cooperated with over 800 high-quality manufacturers that have been strictly selected, building an agile supply network that radiates throughout the country.
Certificate Of Honor
  • Verification of Conformity
  • Magnetic field extrusion type open magnetic system permanent magnet device
  • Multifunctional permanent magnet device composed of rotating magnetic core and horizontal fixed steel group
  • Hybrid permanent magnet device composed of a rotating magnetic core and a forward polarity magnetic steel assembly
  • A magnetic fixing device
  • A magnetic fixer
News
Industry knowledge

Plasma cutting technology is widely used in the metal processing industry due to its high efficiency, high precision, and wide range of applications. However, in addition to the main machine itself, plasma cutting accessories also play a crucial role in the cutting process. Proper selection and use of cutting accessories can not only improve work efficiency but also extend equipment life and reduce production costs.

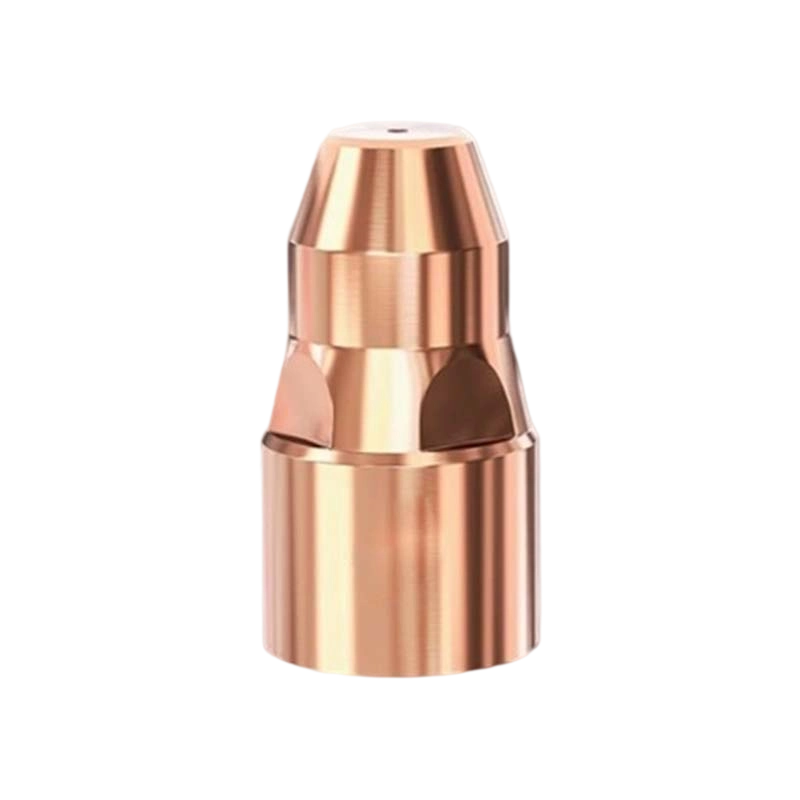

Plasma Cutting Nozzle

The plasma cutting nozzle is an important consumable part of the plasma cutting machine. Its function is to guide the plasma arc to stably cut the metal. The nozzle is usually made of high-temperature resistant materials and can withstand the impact of the high-temperature plasma stream.

When choosing a cutting nozzle, the following aspects should be considered:

  • Orifice size: The orifice size directly affects the stability of the cutting arc and the cutting speed. A larger orifice can easily lead to an unfocused arc and rough cutting edges; a smaller orifice may cause blockage or premature damage.
  • Material durability: Commonly used nozzle materials include copper and copper alloys, which have good conductivity and wear resistance. Choosing a suitable material based on the working environment can extend the service life.
  • Service life: The cutting nozzle is a consumable part and needs to be replaced after a period of use. Regular inspection and replacement of the cutting nozzle can ensure stable cutting quality.

Electrode

The electrode is the core component of the plasma cutting machine that generates the plasma arc, and it is used in conjunction with the cutting nozzle. The main function of the electrode is to guide the current to generate a high-temperature plasma arc, achieving metal melting and cutting.

Key points for electrode selection and maintenance include:

  • Material selection: Electrodes generally use tungsten or copper alloy materials, which have good conductivity and high-temperature resistance.
  • Matching use: The precision of the fit between the electrode and the cutting nozzle directly affects the stability of the plasma arc. Poor fit may lead to arc deviation or uneven cutting.
  • Maintenance: Keeping the electrode clean and avoiding oxidation and carbon buildup can extend its service life and improve cutting quality.

Cutting Guide Rails and Slide Rail Accessories

For precision cutting, plasma cutting machines are often equipped with a guide rail system to ensure the accuracy of the cutting trajectory. Cutting guide rails and slide rail accessories are important components that ensure smooth machine movement.

  • Guide rail precision: High-precision guide rails can reduce vibration during the cutting process and improve the smoothness of the cutting edge.
  • Lubrication and maintenance: Regularly add lubricating oil to the guide rails and slide rails to reduce wear and ensure long-term stable operation of the equipment.
  • Dust Prevention Measures: A large amount of metal dust is generated during the cutting process; the guide rails should be equipped with dust-proof devices to extend their service life.

Gases and Gas Supply Accessories

Plasma cutting requires high-pressure gas to form the plasma arc. Commonly used gases include air, nitrogen, and oxygen. Gas quality and the gas supply system directly affect the cutting results.

  • Gas Filter: High-purity gas reduces the impact of impurities during the cutting process and improves cutting accuracy.
  • Pressure Regulation: Appropriate gas pressure not only ensures a stable plasma arc but also extends the service life of the electrode and cutting nozzle.
  • Flow Control: Different materials and thicknesses of metal require adjustment of the gas flow rate to achieve good cutting results.

Cooling System and Accessories

The high-temperature plasma arc generates a large amount of heat; therefore, the cooling system is an indispensable part of plasma cutting accessories. Common cooling methods include water cooling and air cooling.

  • Water Cooling System: Removes heat generated by the cutting machine through circulating coolant, suitable for long-term, high-load cutting.
  • Air Cooling System: Uses a fan for heat dissipation, simple in structure, suitable for small and medium-sized cutting equipment.
  • Maintenance Requirements: Regularly replace the coolant or clean the fan blades to ensure cooling efficiency and prevent equipment overheating.

Support Devices and Workpiece Fixing Accessories

During the cutting process, metal workpieces need to be stably fixed; otherwise, cutting deviations or safety hazards may occur. Support devices and fixing clamps are key accessories to ensure cutting quality.

  • Support Table: Provides a stable cutting surface to prevent workpiece vibration.
  • Clamp Design: Select appropriate clamps according to the workpiece shape to ensure that the workpiece does not move during the cutting process.
  • Safety Protection: Proper use of fixing accessories can reduce operating risks and ensure operator safety.

Additional Function Accessories

Modern plasma cutting machines are often equipped with some additional function accessories to meet different cutting needs.

  • Automatic Feeding Device: Suitable for mass production, improving work efficiency.
  • Digital Control System: Achieves precise cutting through CNC programs, reducing manual intervention.
  • Cutting Monitoring Device: Monitors the cutting status in real time, promptly identifies problems, and prevents a decline in cutting quality.

Daily Maintenance of Plasma Cutting Accessories

Regardless of the quality of the accessories chosen, daily maintenance is an important part of extending their service life and ensuring cutting quality. Maintenance methods include:

  • Regular Inspection: Check the wear of electrodes, cutting nozzles, and guide rails, and replace them promptly.
  • Cleaning and Maintenance: Keep the surface of the accessories clean and avoid the accumulation of metal dust and impurities.
  • Proper Use: Strictly follow the equipment operating procedures when using the accessories, avoiding overloading or improper operation.
  • Record Management: Establish usage and maintenance records for the accessories to facilitate subsequent management and repair.

Plasma cutting accessories play an indispensable role in metal processing. Proper selection, correct installation, and scientific maintenance of these accessories can not only improve cutting accuracy and efficiency but also extend the service life of the equipment and reduce production costs.
